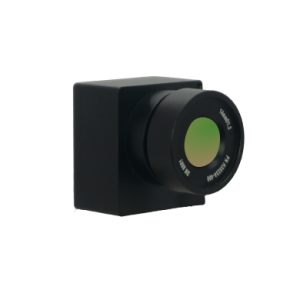

TE – EV1
If you want to know the price, please contact us
설명
Power consumption
| Detector type | Mini-Bolometer(uncooled) |
|---|---|
| Array format and Pitch | 640×480, 17㎛ |
| Thermal sensitivity(NETD) | 50mk(Option : 35mk) / F#1.0, room temperature |
| Spectral range | 8 to 14 µm |
| Power supply | DC 5V |
| Video output format | NTSC or PAL, USB, LVDS, CAMERALINK (Selected by the FB) |
| Control | RS-232 @ baud rate 115200, I2C |
| Frame rate | 9Hz (Option : 30Hz or 60Hz **30Hz or 60Hz needs Export Licence**) |
| Time to First Image | <10sec |
| Control Command Protocols | USB2.0, RS-232, I2C |
| Dimensions(W x H x D) (with lens mount) | 42.5mm x 44.6mm x 41.1mm (Type A)42.5mm x 44.6mm x 35.9mm (Type B) |
| Weight | < 110g (without lens) |
| Operation temperature | -10°C ~ 65°C (Option : -40°C ~ 65°C) |
| Storage temperature | -40°C ~ 85°C |
| Scene range temperature | -10°C ~ 120°C (at Digital output) |
