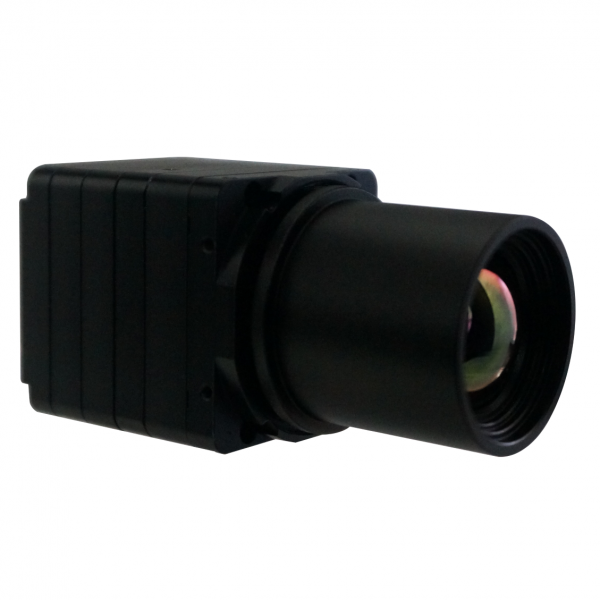

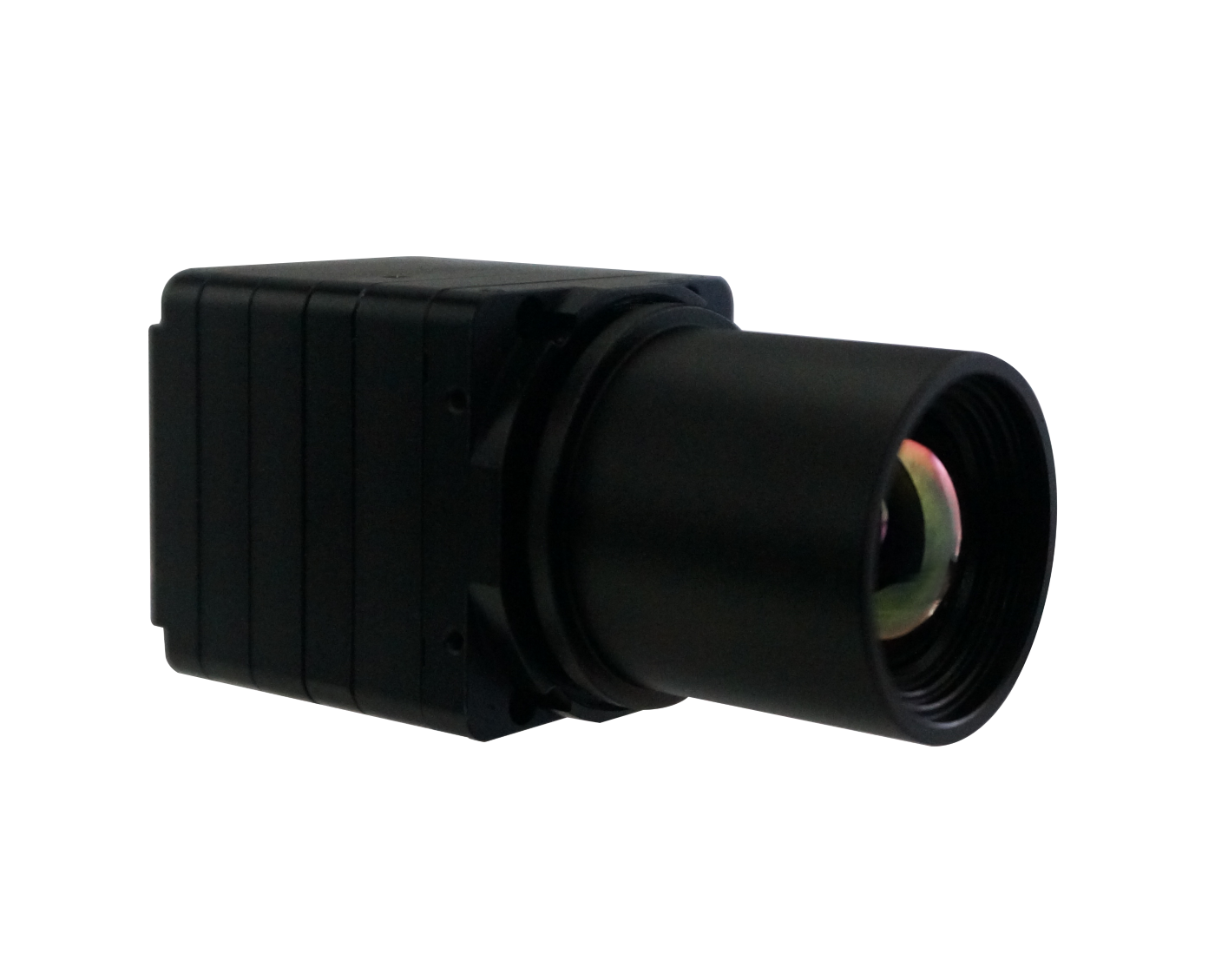

TE – EV2
If you want to know the price, please contact us
설명
| Detector type | Micro-Bolometer(uncooled) |
|---|---|
| Array format and Pitch | 640×480, 12㎛ |
| Thermal sensitivity(NETD) | 50mk / F#1.0, room temperature |
| Spectral range | 8 to 14 µm |
| Power supply | DC 5V ( < 0.5A ) |
| Power consumption | < 2.0W @ 30 Hz (Steady State) |
| Video output format | Digital: Camera Link, USB, LVDS, LVCMOS, BT656 Analog: NTSC, PAL |
| Control | RS-232 (RS-485 optional) |
| Frame rate | 30Hz |
| Time to First Image | < 7 sec max (Typ. < 6 sec) |
| Dimensions(W x H x D) (with lens mount) | 30mm x 36mm x 27mm |
| Weight | < 50g (without lens) |
| Operation temperature | -10°C ~ 65°C (Option : -40°C ~ 65°C) |
| Storage temperature | -40°C ~ 85°C |
| Scene range temperature | -10°C ~ 150°C (0°C ~ 500°C optional) |
